Nupac Industries has a new solution for handling and portioning cookies and crackers, the Syntegon IDH (intelligent direct handling), which is based on a newly developed picker technology using linear motors.
The flexible pick-and-place machine not only ensures particularly gentle product handling, but also offers a compact design, along with high output and the option of loading different products – both flat and on-edge.
As the local representative of Syntegon, Nupac sees the IDH as a highly efficient and flexible addition to Syntegon’s growing pick-and-place portfolio.
“Representing an innovative and reliable partner such as Syntegon allows us to continually provide the highest quality, and most effective solutions to Australian manufacturers, ensuring the local manufacturing sector continues to grow and improve,” said Peter Pontikis, managing director at Nupac.
Gentle handling thanks to linear motor technology
According to Philipp Kathan, lead engineer IDH at Syntegon, the linear motor bar forms the heart of the new machine.
“With a normal 30 cycles per minute, the bar’s up to 40 pickers pick the products from the process belt and place them into a flow – wrapper infeed or into trays,” explained Kathan.
“Thanks to the slow and smooth movements of the linear motor movers, the cookies and crackers are handled with minimal mechanical stress and vacuum application – preventing breakage or damage to the product surface and ensuring optimal production efficiency.”
The IDH picks the cookies directly from the process belt to keep the transport distances between the oven and the packaged product as short as possible, thereby reducing abrasion.
Not only does this result in less product waste, cleaning efforts are also minimised because less product residue accumulates in the system.
An integrated camera-based vision system detects the position and shape of the cookies and crackers on the infeed belt, and transmits this information to the picker control system. It identifies different product patterns or random arrangements and processes them reliably.
Each picker can be aligned individually to ensure all products are placed into trays or the infeed chain correctly. Moreover, an integrated mini buffer automatically fills incomplete product rows, thus increasing system efficiency.
Flexible and future-proof

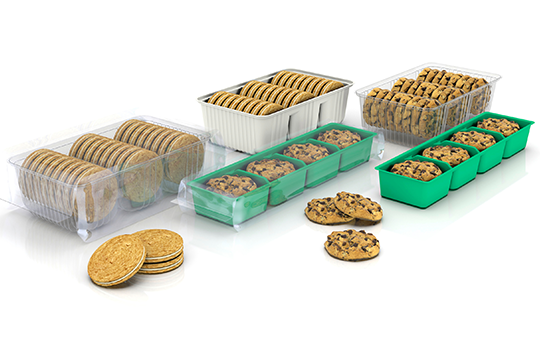

Besides gentle handling, the IDH also impresses with its product and pack style flexibility – the number of vacuum pickers can be adjusted depending on the respective product and production volume.
Also, when integrated into horizontal packaging lines, the Syntegon IDH provides high pack style flexibility.
“With the IDH, we are launching a compact and flexible solution that offers manufacturers a variety of options for packaging different product shapes and sizes,” said Daniel Bossel, product manager at Syntegon.
“Cookies and crackers are picked directly from the process belt and placed into trays or the infeed of the downstream flow wrapping machine either on-edge or flat. This allowed us to omit long belts with chicanes and make the system design even more flexible.“
Compact design and high output
With its sophisticated overall concept, the Syntegon IDH makes the packaging process less complex – its space-saving design not only minimises conveying distances, but also allows for new system layouts traditionally used in bar production.
Despite its compact dimensions, the IDH achieves a maximum output rate of up to 800 products per minute – combined with its low reject rate and short downtimes, this ensures high overall equipment effectiveness.
“The Syntegon IDH complements the Sytegon RPP pick-and-place platform launched in 2021 perfectly,” Bossel added.
“While the RPP’s delta robots pick up to 120 products per minute from a narrow belt, the IDH is ideal for higher volumes and particularly wide process belts.
“With our comprehensive portfolio for the cookie and cracker industry, we are able to offer our customers tailored system solutions with a low TCO from a single source.”
